1. Product introduction

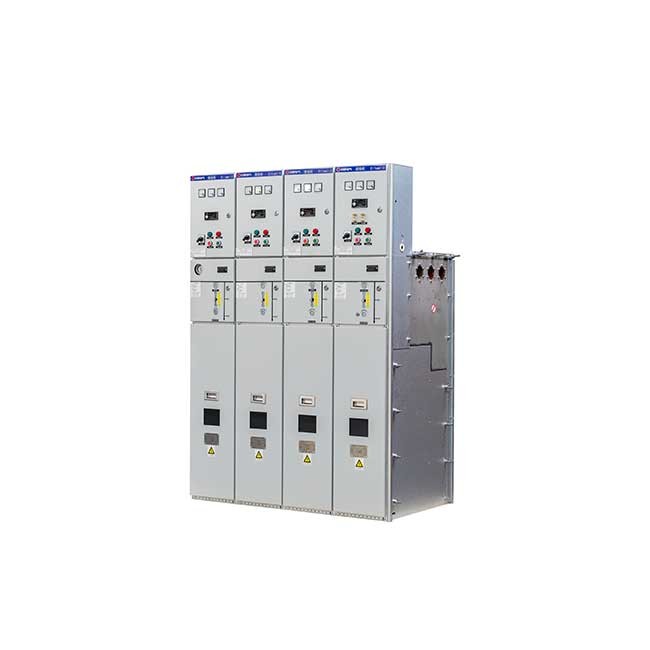

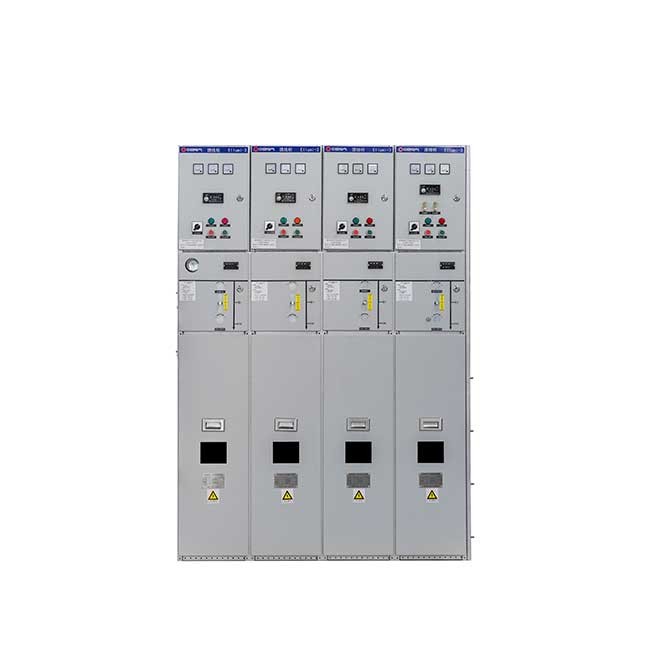

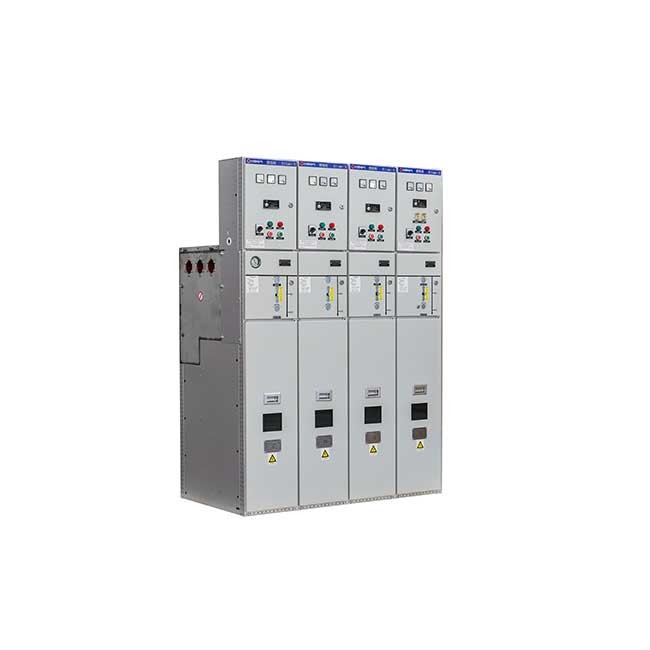

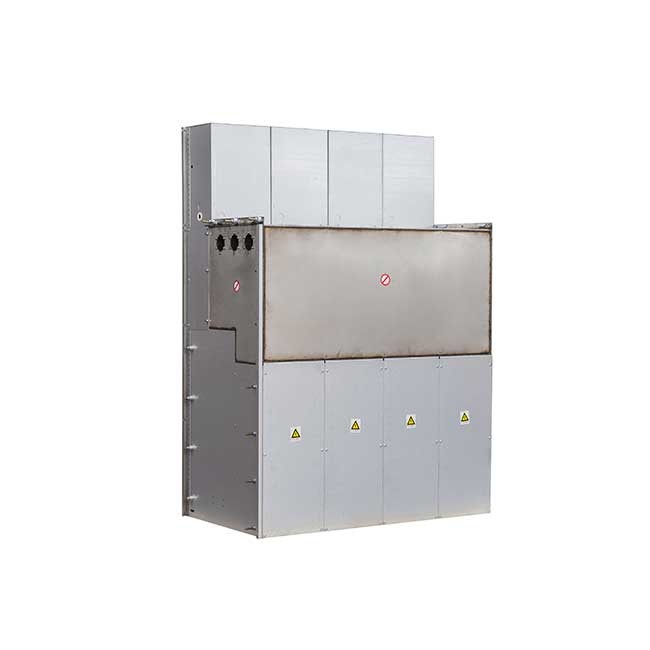

Ellumi-3 series Ring main unit is applied in 10kV distribution system, which can realize ring network power supply and radial power supply. It has the characteristics of small size and compact structure, and can greatly save the floor area of switching station or distribution room. Therefore, it is widely used in industrial area, high-rise buildings, large public buildings, residential areas, prosperous commercial centers, outdoor switch boxes, box type substations and other places.
2. Product features
◆ it is safe and reliable. The air box body and cable connection room are equipped with fault arc protection design, and the bottom of the air box and cable connection room is equipped with explosion relief film and pressure release device, which can maximize personal safety
◆ the switch cabinet shell is assembled by C-section. The whole shell is divided into instrument room, main bus room, circuit breaker room and cable room. Each compartment is separated by metal partition
◆ VS1-12 series vacuum circuit breaker is used as the main switch for closing the cabinet, gn30s-12 or gn22-12 series is used as the isolation switch, and full insulation structure is used for the transformer, so the safety margin of the whole cabinet is high
3. Main technical parameters
|
Item |
Unit |
Load switch cabinet |
Combination cabinet |
Breakers cabinet |
||
|
|
Rated working voltage Ue |
kV |
12 |
|||
|
|
Rated insulation level 1min power frequency withstand voltage |
kV |
相对地及相间：42 隔离断口：48 |
|||
|
|
Rated insulation level lightning shock resistance |
kV |
75 |
|||
|
|
Rated current |
A |
630 |
125 |
630/1250 |
|
|
|
Rated active load reaking current |
A |
630 |
|
|
|
|
|
Rated closed-loop breaking current |
A |
630 |
|
|
|
|
|
Rated cable charging breaking current |
A |
10 |
|
25 |
|
|
|
Rated cable charging breaking current |
kA |
31.5 |
25 |
||
|
Rated short circuit closing current |
kA |
50 |
80 |
63 |
||
|
Rated short-term withstand current |
kA |
20 |
|
25 |
||
|
Rated peak withstand current |
kA |
50 |
|
63 |
||
|
Mechanical life operating cycle |
|
5000 |
5000 |
10000 |
||
|
|
Temperature |
|
-40℃-+40℃ |
|||
|
SF6 air pressure |
Mpa |
0.03 |
||||
|
Arc resistance |
kA/s |
20 |
||||
|
|
IP class |
|
IP67 for air tank and IP4X for other parts |
|||
4. Overall dimensions
N/A
